Stationary Sampling Systems

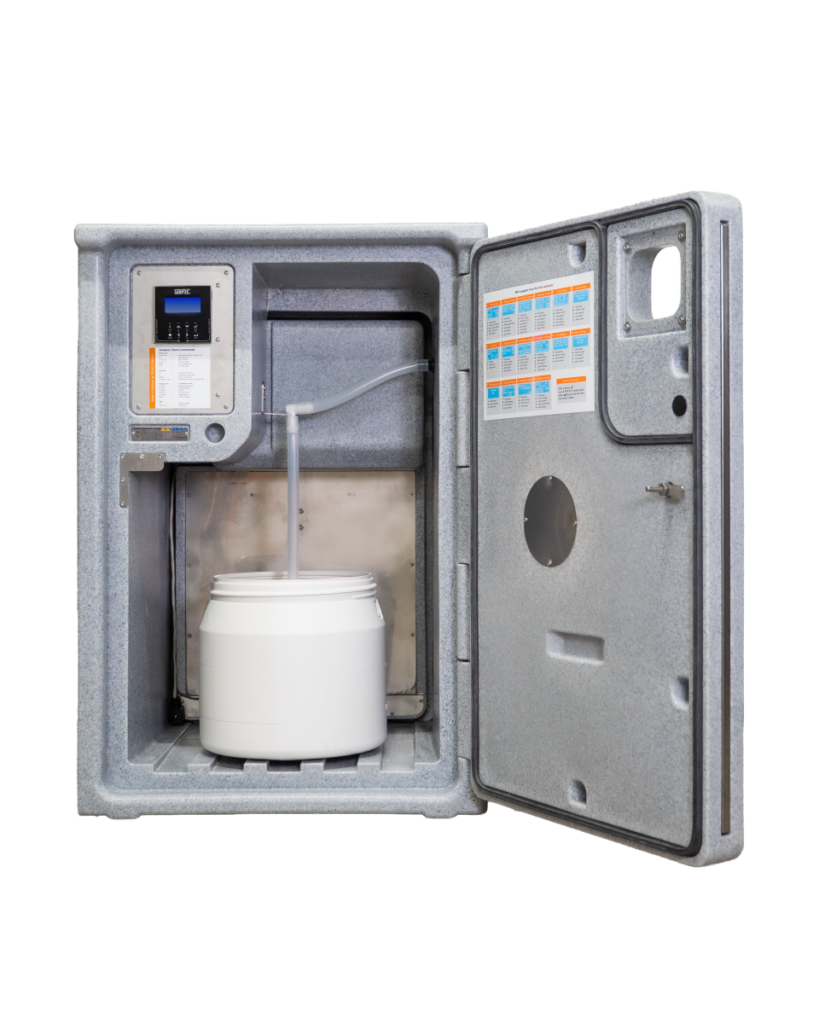

Samptec Inline Sampler
Industry favorite
Our inline sampler is designed for fully filled pipe applications. The sample is taken directly from the pipe with the sampling assembly. Under gravity the sample drains to its container.
Unique selling points:
- Direct sampling from pipes
- Robust outdoor PE enclosure made with recycled plastic
- Easily removable cooler with SS316 evaporator
- Future-proof refrigerant R290a (GWP 3)
- Ultra Low Voltage 24VDC — safety first
- Cooled sample storage 0–5°C
- User & maintenance-friendly design
Dimensions:
± Depth 620mm x Length 690 mm x Height 1000 mm
Customer requirements:
Power 230 VAC 50Hz /110 VAC 60Hz.
Pulse per xxxx,x m3 or 4-20 mA flow signal for flow proportional sampling.
Conditioned air supply 6-10 bar (if not available select type GE3 or GE6).
Frequently purchased options

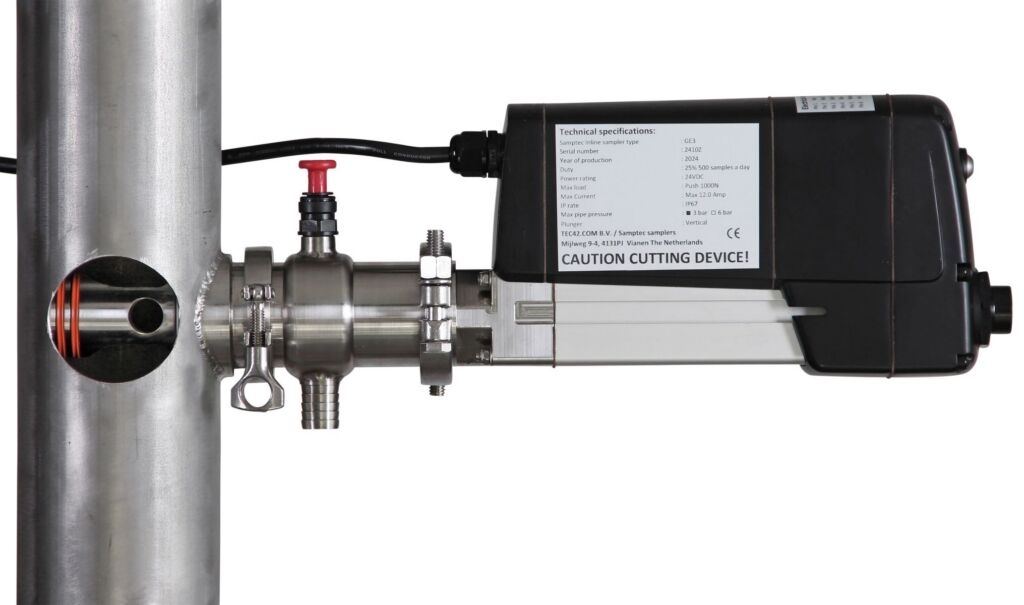

- Electric guillotine version GE3

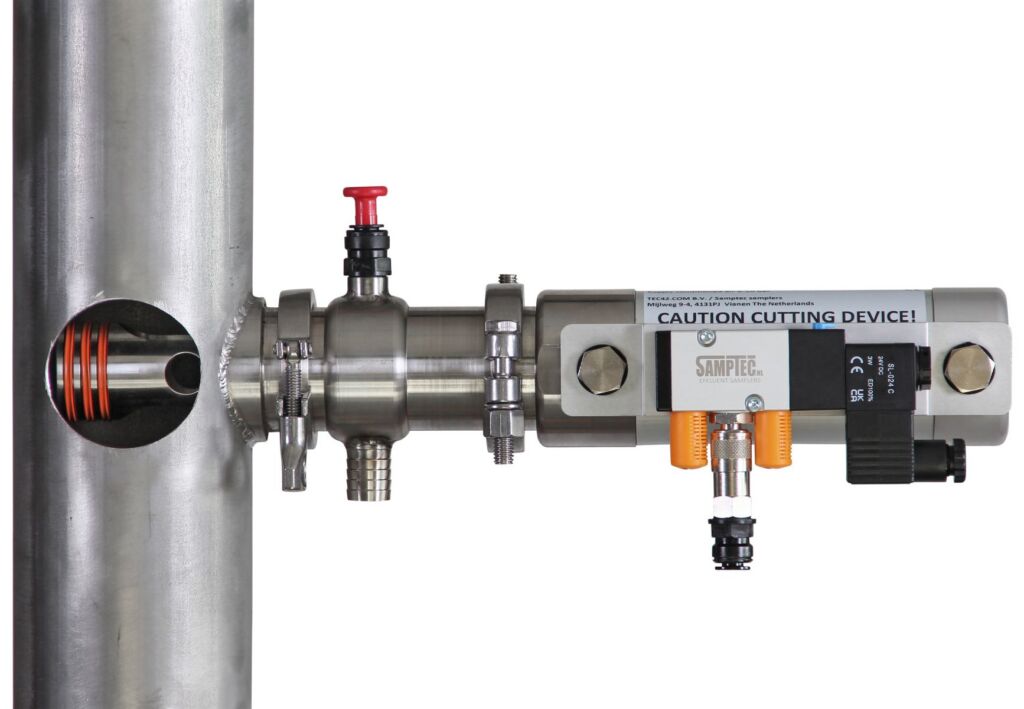

- Pneumatic guillotine version GP3
- Container distributor system
- Modbus TCP communication module
- Elevation frame 400mm
- Transportation set
- Siemens PLC upgrade
- Remote control
